WOOPTIX is an innovative Spain-based company that provides
high-resolution, real-time phase measurement technology.
With its Wavefront Phase Imaging (WFPI) technology—overcoming
the limitations of the traditional Shack-Hartmann method—
WOOPTIX sets a new standard of resolution in the semiconductor,
bio, and precision metrology markets.
Main Specification
| Items | Specification |
|---|---|
| Phase Sampling | 1000 x 1000 |
| Lateral Resolution | 12.5 μm |
| Aperture Dimension | 15 x 15 mm |
| Wavefront Accuracy | < λ/30 RMS |
| Repeatability | ~ λ/30 RMS |
| Wavelength Range | 380 - 650 nm |
| Real-Time Processing | 30 fps |
| Interface | USB 3.0 |
| OS | Windows |
SEBI® RT1000 Applications & Measurement Examples

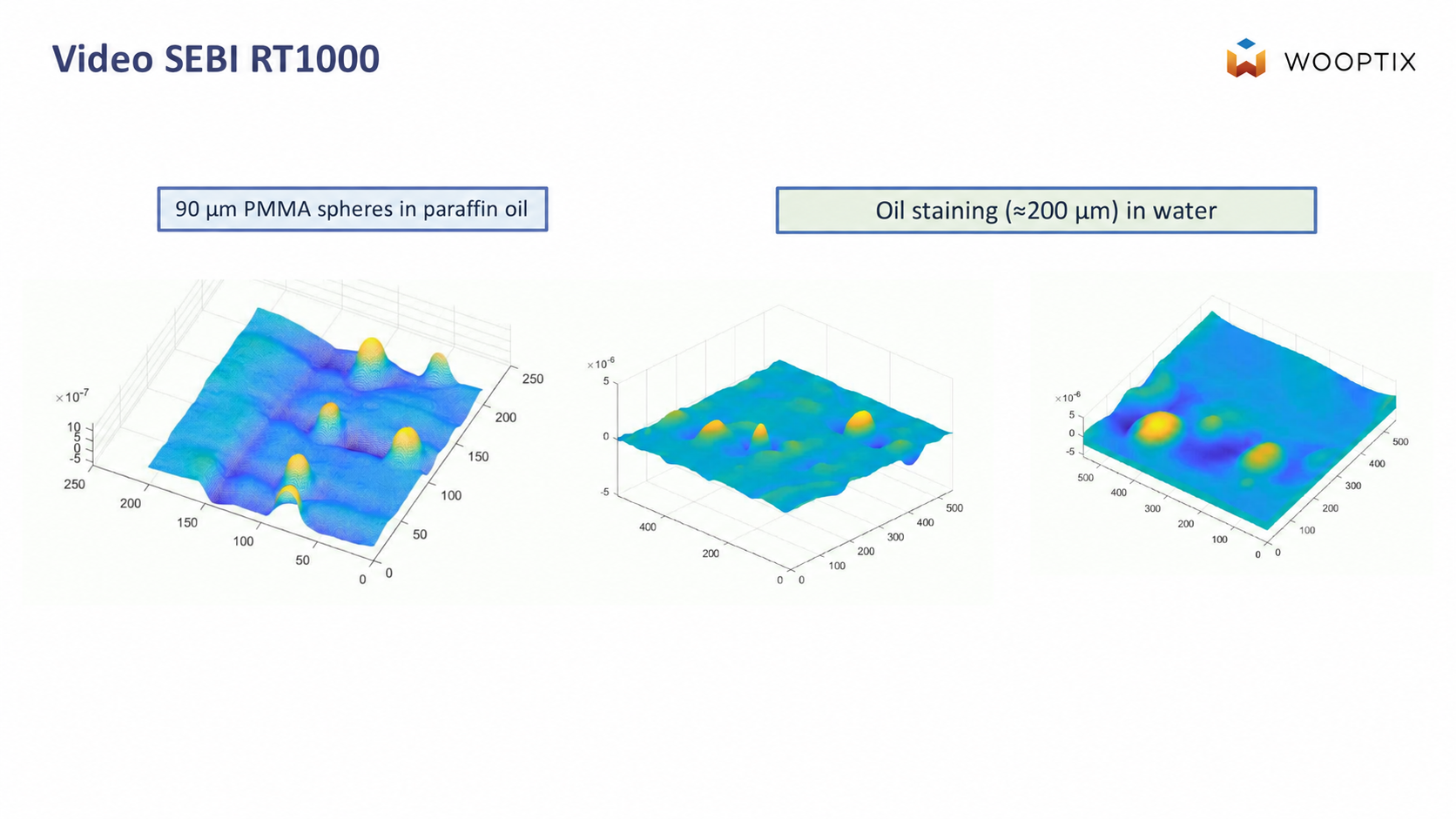

Video SEBI RT1000

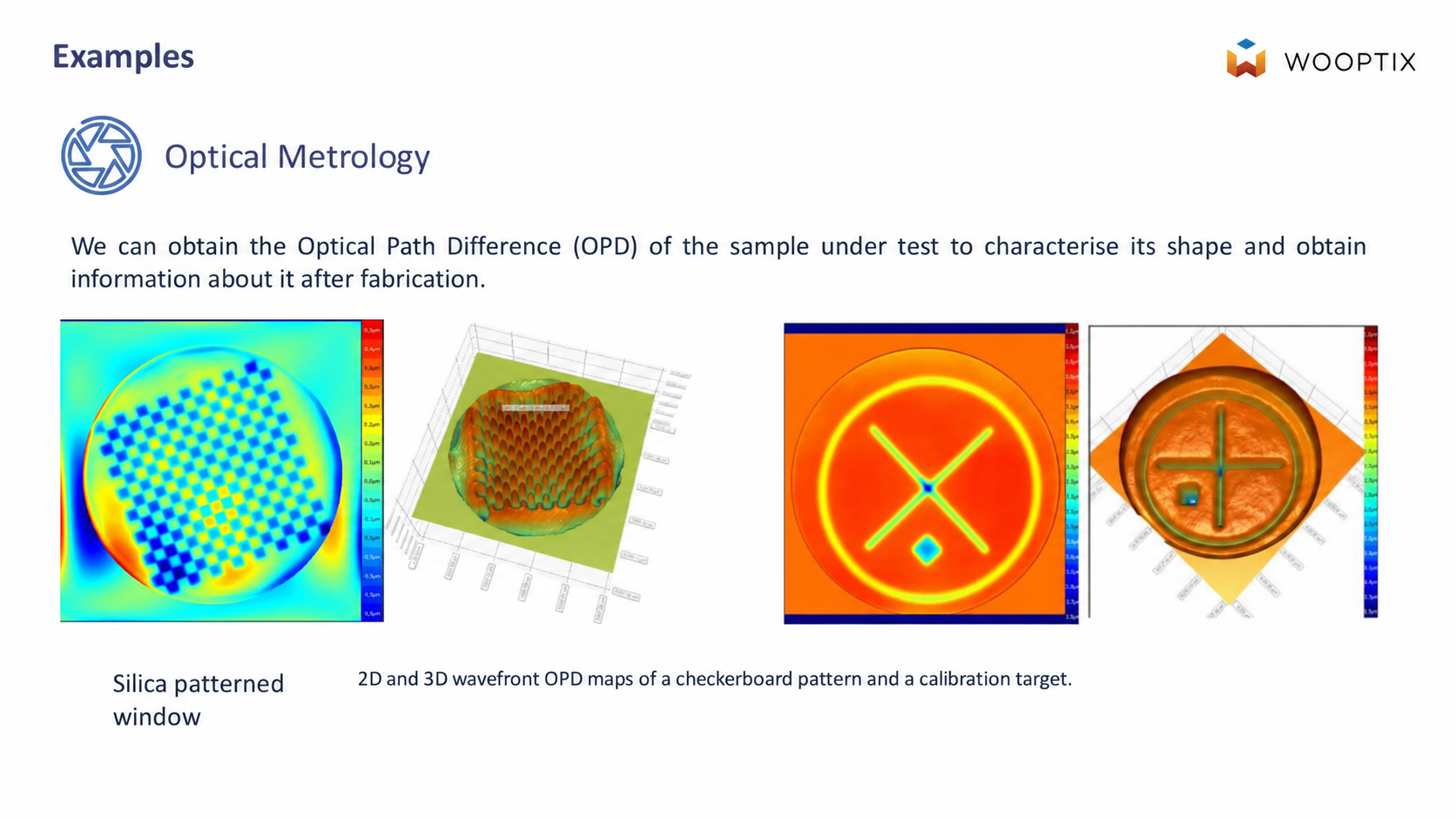

Optical Metrology

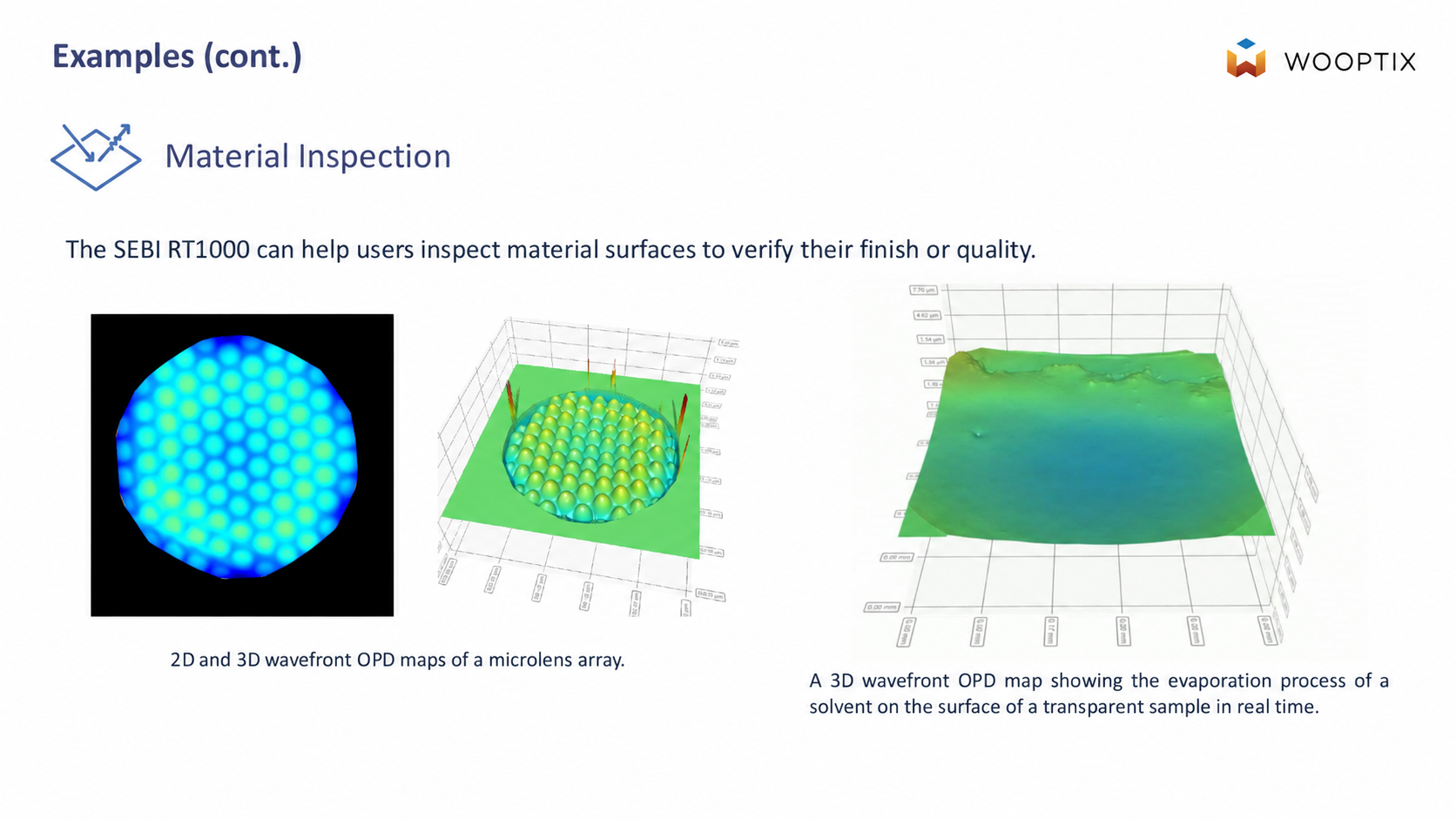

Material Inspection

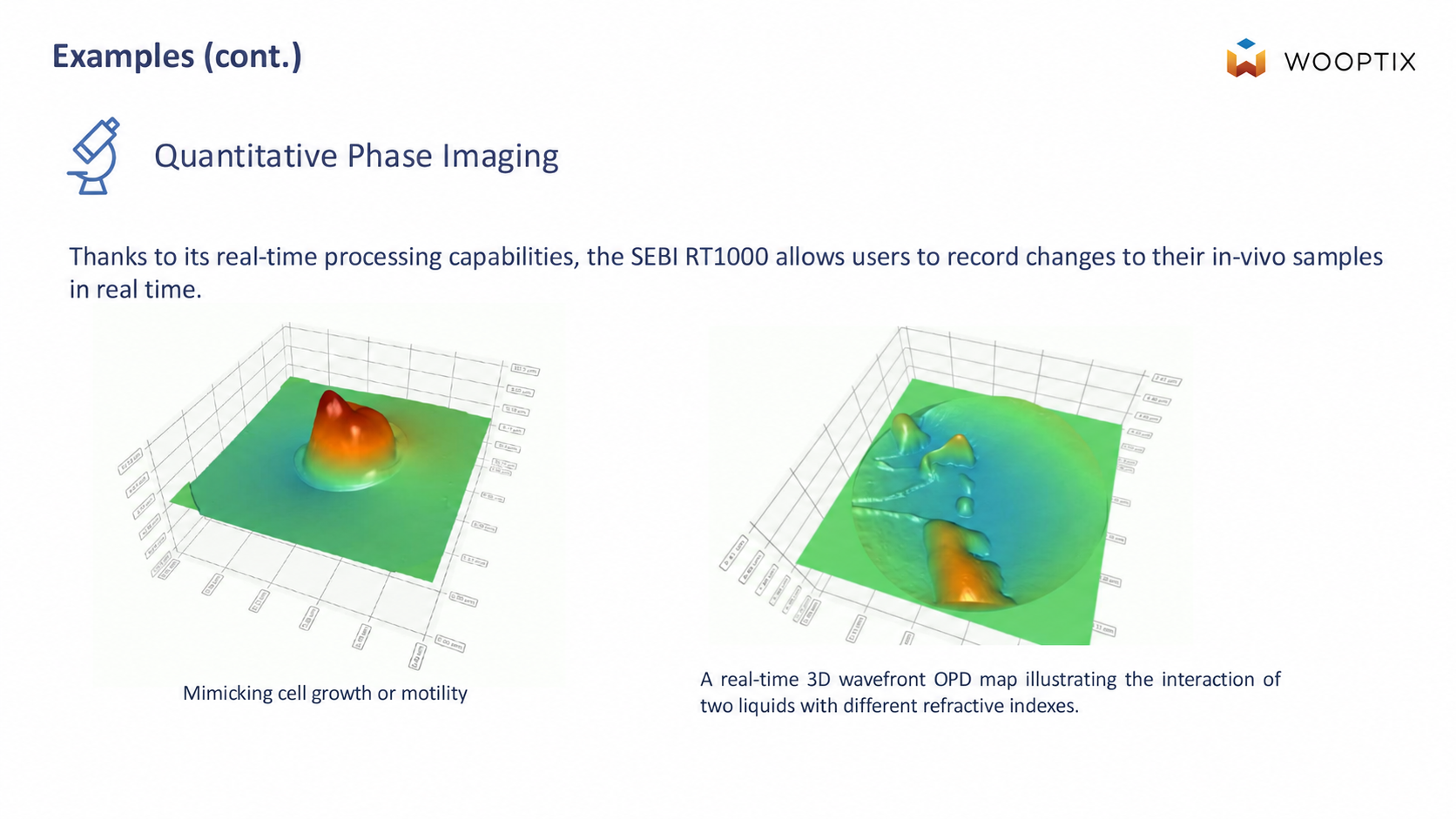

Quantitative Phase Imaging

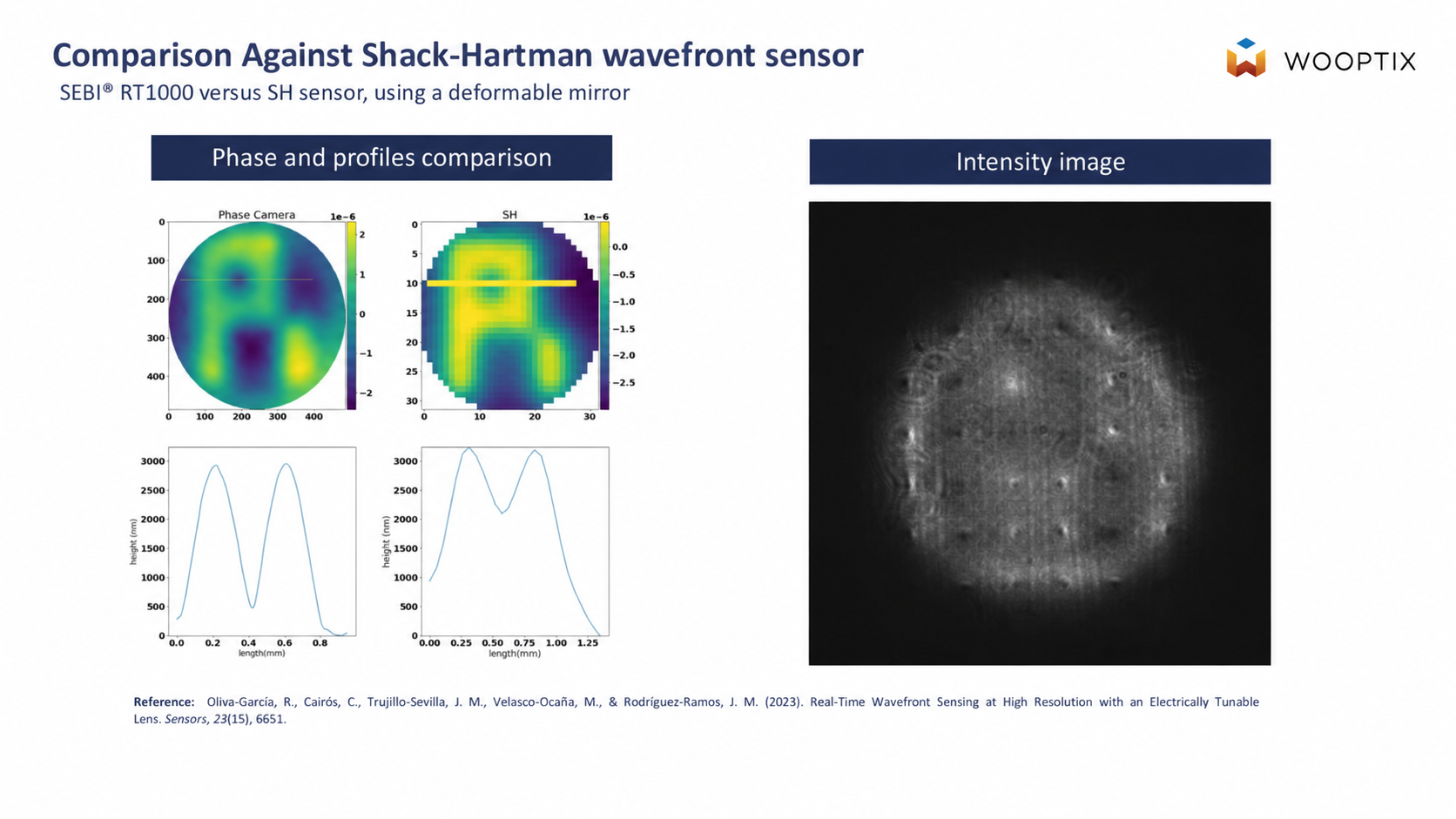

Comparison Against Shack-Hartmann Wavefront Sensor
