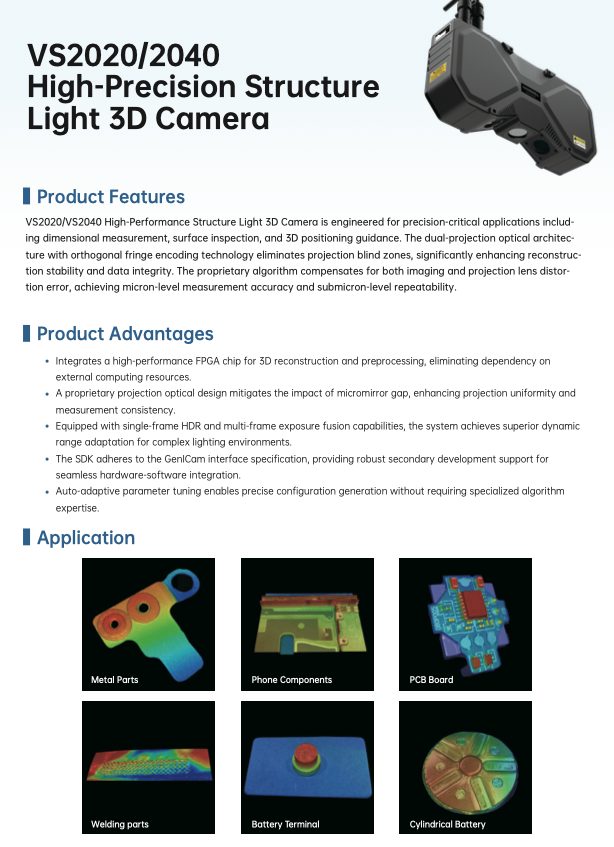

Product Overview
The VS2020/VS2040 High-Performance Structured Light 3D Cameras are built for precision-demanding applications like dimensional measurement, surface inspection, and 3D positioning. These cameras utilize dual-projection optical architecture with orthogonal fringe encoding technology to eliminate projection blind spots and ensure accurate, stable 3D reconstruction.
Key Advantages
- Built-in high-performance FPGA for onboard 3D reconstruction
- Proprietary projection design reduces micromirror gap interference
- Supports HDR and multi-frame exposure for complex lighting environments
- GenICam-compliant SDK for easy integration and development
- Auto-adaptive parameter tuning without the need for algorithm tuning expertise
Applications
- Metal parts
- Phone components
- PCB boards
- Welded parts
- Battery terminals
- Cylindrical batteries

Specifications
Model | VS2020 | VS2040 |
---|---|---|
Pixel Resolution | 3072 x 2560 | 4096 x 3072 |
Frame Rate (Full / Binning) | 4 FPS / 8 FPS | 3 FPS / 6 FPS |
XY FOV (Near-Far) | 17.8~18.4 x 14.8~15.4 mm | 46.4~49.6 x 34.8~37.2 mm |
Z Range | ±2.5 mm | ±5 mm |
Repeatability (σ) | 0.2 μm | 0.5 μm |
XY Interval | 11.7 μm | 5.9 μm |
Light Source | Dual-projection unit with high-brightness blue LEDs | |
Data Interface | 2500/1000BASE-T, GigE Vision | |
Ingress Protection | IP67 | |
Operating Temp | 0°C to 40°C | |
Vibration Resistance | 10~57 Hz, 0.75 mm, 2 hrs (X, Y, Z) | |
Impact Resistance | 15 G / 6 ms | |
Dimensions | 283 x 132 x 61 mm | |
Weight | Approx. 3.1 kg |
